CNC Machining
- Rapid prototyping and full-scale production
- Tolerances down to±0.0002″ (0.005mm)
- ISO-9001:2015,ROHS:2011/65/EU,CE certification
- Machined parts as fast as 1 day
- Get a quick quote within 4 hours
- 50+ metals and plastics, 20+ surface finishes
CNC Machining Services
Our state-of-the-art CNC machining services utilize precision 3-axis, 4-axis, and 5-axis machines, supported by our experienced team. We offer a comprehensive range of custom machining services, including high-precision milling, turning, drilling, grinding, cutting, EDM, and welding. As a trusted one-stop solution for manufacturing factories, we deliver high-quality CNC machined parts with short lead times.
Our Partners
Our CNC Machining Services
Our services cater to both low-volume and high-volume production, ensuring flexibility to meet your specific needs. We work with a wide range of materials, including plastic and metal. Common plastic materials such as ABS, PC, POM, PA, PP, PMMA, PEEK, PS, PPS, and TPFE are processed with precision. Additionally, we work with various aluminum alloys, stainless steel, brass, bronze, titanium alloys, magnesium alloys, crystal, and wood.
CNC Turning
CNC turning uses CNC lathes and turning centers to shape metal rob stock, focusing primarily on cylindrical parts. Ensure components achieve consistent dimensions and smooth finishes.
CNC Milling
CNC milling performs multi-axis milling operations, including 3, 4, and 5-axis machining processes. Offer precision and allow for the creation of detailed and specific geometries from metal or plastic blocks.
CNC Drilling
We adopt deep-hole drilling machine to process components with higher precision, fast processing efficiency, and stable batch processing.

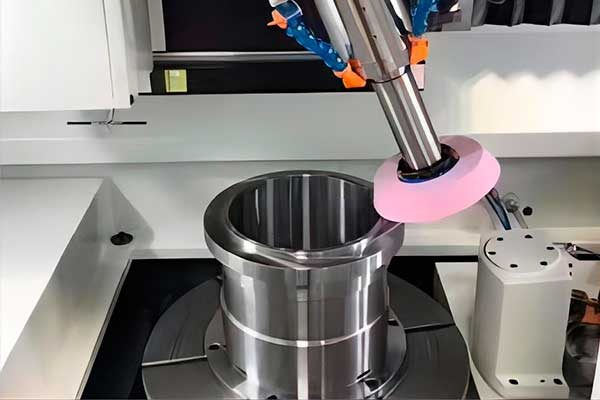

CNC Grinding
We utilize high-precision grinding machines tailored for the production of metal parts requiring stringent tolerances. Our adaptable grinding capabilities are adept at handling a wide range of components, from small parts to intricate geometries.

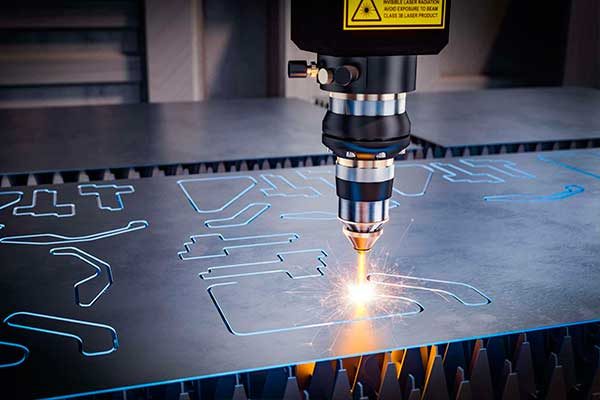

CNC Cutting
We unite proficient machinists with state-of-the-art laser cutting facilities, capable of precision cutting across a spectrum from delicate aluminum foils to robust steel sheets. Experience our metal laser cutting services encompassing an extensive array of advanced processes and cutting-edge technology
CNC EDM
Our wire EDM stands out as a highly efficient method for crafting both simple and intricate shapes. Particularly well-suited for parts demanding utmost precision, this non-contact technique minimizes burrs and demonstrates exceptional performance with metals such as steel and titanium.
Our CNC Machining Numbers
Our Capability
| Standards | CNC Milling | CNC Turning |
| Maximum Part Size | 4000×1500×600 mm 157.5×59.1×23.6 in. | 200×500 mm 7.9×19.7 in. |
| Minimum Part Size | 4×4 mm 0.1×0.1 in. | 2×2 mm 0.079×0.079 in. |
| Minimum Feature Size | Φ 0.50 mm Φ 0.00197 in. | Φ 0.50 mm Φ 0.00197 in. |
| Standard Tolerances | Φ 0.50 mm Φ 0.00197 in. | Φ 0.50 mm Φ 0.00197 in. |
| Linear Dimension | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
| Hole Diameters (Not Reamed) | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
| Shaft Diameters | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
| Edge Condition | *Sharp corner will be removed in the form of a chamfer or radius. The size of the chamfer, or resulting radii, must be indicated on the drawing. | |
| Threads and Tapped Holes | Diameter: Φ 1.5-5 mm, depth: 3×diameter Diameter: Φ 5 mm or more, depth: 4-6×diameter | Diameter: Φ 1.5-5 mm, depth: 3×diameter Diameter: Φ 5 mm or more, depth: 4-6×diameter |
| can produce threads of any specification and size required by our customers. | ||
| Text | Minimum width of 0.5 mm, depth of 0.1 mm; can use CNC engraving or laser carving to create standard text based on customers’ requirements. | can use laser marking to create standard text for CNC turned parts. |
| Metals | Optimal & Quantity | Tolerance (+/-) | Advantage & Considerations | Finish & Appearance | Common Grade Of Materials |
| Stainless Steel | 1-1000 | +/- 0.002 in. +/- 0.05 mm |
|
| SS303,SS303F,SS304,SS316,SS316L, SS440,SS420,SS430,SS440,SS630,17-4PH |
| Alloy Steel | 1-1000 | +/- 0.002 in. +/- 0.05 mm |
|
| SAE1010, SAE1020, SAE1040, SAE1045, SAE4340, A366/CQ, A36, GR60, D-2, 12L14, 50C4V2 |
| Aluminum | 1-1000 | +/- 0.002 in. +/- 0.05 mm |
|
| AL1050, AL2024,A360, AL4643,AL5052, AL5083, AL6061, AL6063, AL6082, AL7075, AL7050 |
| Copper/Brass/Bronze | 1-1000 | +/- 0.002 in. +/- 0.05 mm |
|
| C11000, C10100, C1720, C21000, C27200, C3710, C51900, C51900,C5210, C6301 |
| Titanium | 1-1000 | +/-0.002 in. +/-0.05 mm |
|
| Ti 1, Ti 2, Ti 3, Ti 4 |
| Plastics | Optimal Quantity | Tolerance (+/-) | Advantage & Consideration | Finish & Appearance | |
| HDPE | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| PC | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| ABS | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| PMMA(Acrylic) | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| Nylon 6/6 | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| POM（Acetal Delrin®) | 1-100 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| Polyetherimide（ULTEM®） | 1-1000 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| PEEK | 1-1000 | +/- 0.005 in. +/- 0.1 mm |
|
| |
| PTFE | 1-1000 | +/-0.005 in. +/- 0.1 mm |
|
|

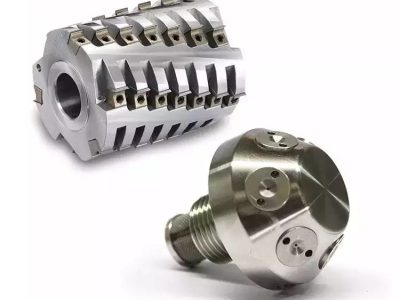

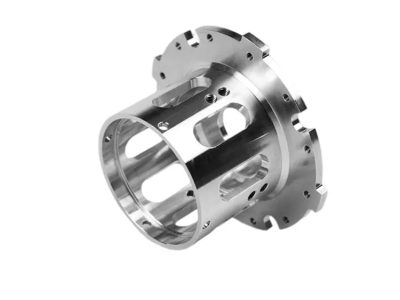

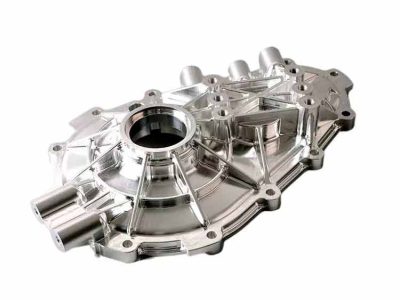

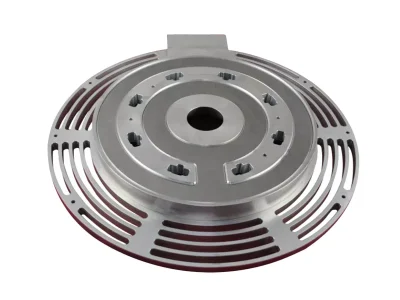

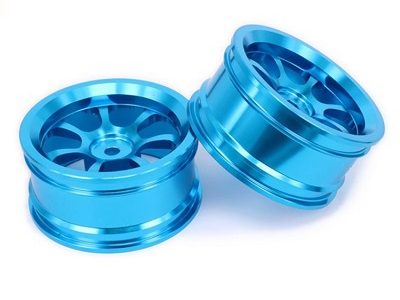

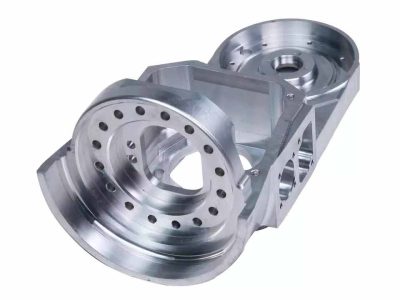

CNC Machined Part Gallery
In order to help you understand our CNC machining capabilities, here are some of our previous projects, and demo parts designed by engineers
Contact
We Are Always Here for You
We have a team of skilled engineers ready to support you throughout your product development journey, from prototyping to production.
When you’re prepared to initiate your next project, just upload your design files, and our engineers will promptly provide you with a quote.
